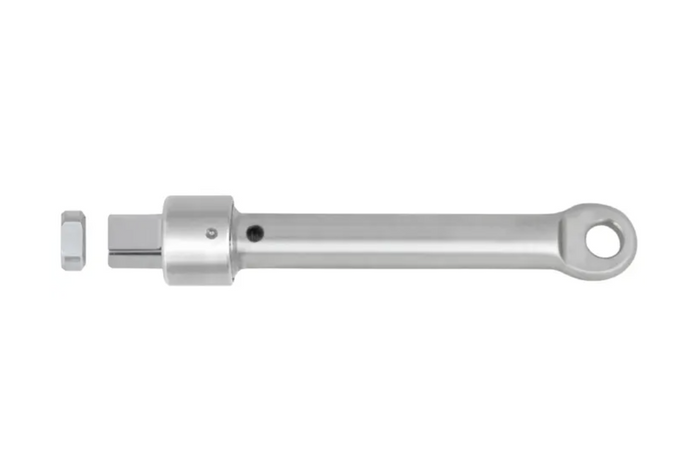

Ronstan Turnbuckle Body, Eye End, Lock Nut, 5/16" RF1484-05
$18.69
Sale price
$18.69
Regular price
$26.33
Rolled UNF Thead
FEATURES
Sleek modern profile.
Easy to adjust than conventional turnbuckles due to fine thread and single end adjustment.
Threads are UNF (Unified National Fine), short pitch threads for fine adjustment and reduced adjustment effort.
Easily adjusted - by turning the unique adjustment nut.
Lock nut included to secure desired length.
Site hole to indicate minimum terminal engagement.
Use of dissimilar but compatible metals avoids the risk of thread seizure.
Threaded eye, toggle and swage terminal end options available

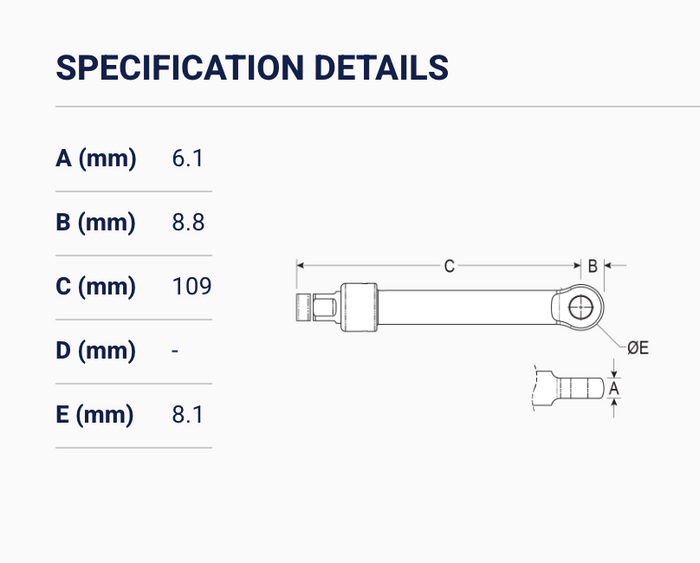

Specifications
| B.L. (kg) | 2360 |
|---|---|
| Weight (g) | 93 |
| Notes: | * The sight hole relates to a length (L) slightly less than L MAX. If maximum length (L) is required the threaded end can be unscrewed beyond the sight hole, but the length must not exceed the specified L MAX dimension. |
