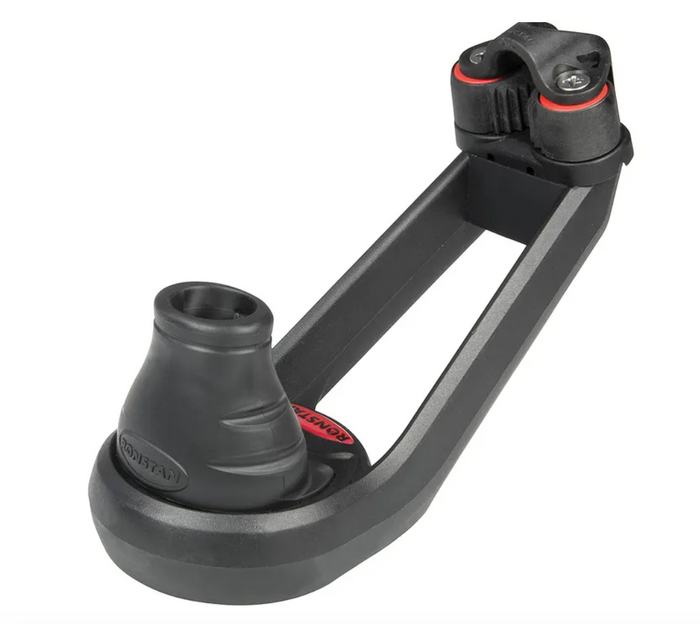

RONSTAN Swiveling Mainsheet Cleat Base, Small RF6
RONSTAN Swiveling Mainsheet Cleat Base, Small RF6
Small ball bearing swivelling cleat base, small C-Cleat™ and fairlead
FEATURES
Ball bearings support the cleat arm.
An integral stop prevents over rotation, but can be removed to allow full 360° rotation.
The cleating angle can be set in one of two positions - use the included riser kit for a higher cleating angle.
A switchable ratchet in the base allows the cleat arm to remain in its most recently used position.
The ratchet can be turned off for free swivelling.
Includes small C-Cleat™ cam cleat and fairlead, suitable for line sizes 2-8mm (3/31 - 5/15") dia.
APPLICATIONS
Suits traditional shackle head blocks and Dyneema® link head Orbit Blocks™. Mainsheet systems on dinghies to 4.5m (15ft)
MATERIALS
Glass fibre reinforced base and cleat arm. Grade 316 stainless steel fixings and block attachment loop
SPECIFICATIONS
| B.L. (kg) | 250 |
|---|---|
| M.W.L. (kg) | 125 |
| Weight (g) | 210 |
| Notes: | Load ratings are for the cleat base assembly, and are based on a 120° change in line direction. Line loads should be limited to M.W.L. 125kg (275lb). |
