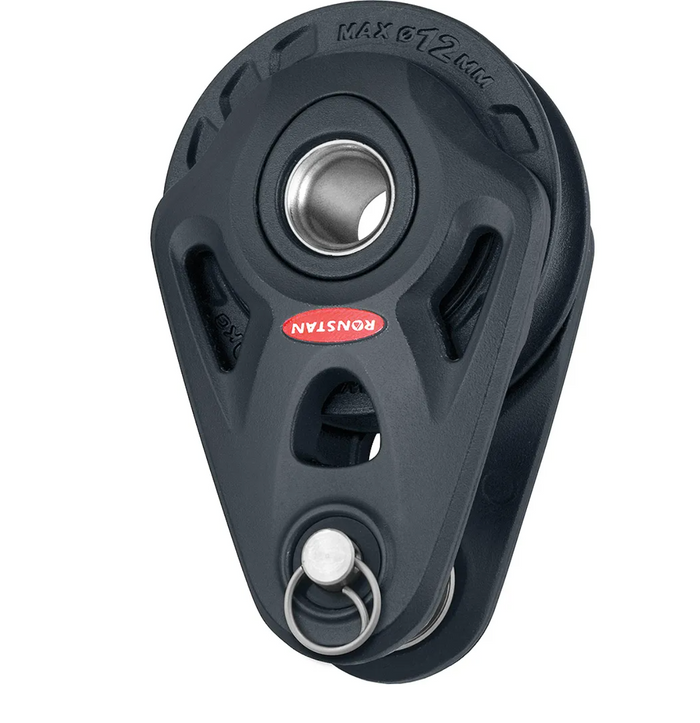

Ronstan Series 60 Core Block™, Mast Base with 8mm Clevis Pin RF64108A
$50.15
Sale price
$50.15
Regular price
$70.63
Skip to product information
Ronstan Series 60 Core Block™, Mast Base with 8mm Clevis Pin RF64108A
$50.15
Sale price
$50.15
Regular price
$70.63
Mast base, 8mm (5/16") clevis pin head
FEATURES
Class leading performance and sleek, contemporary styling.
Excellent dynamic and high static load performance.
Less than half the friction of the nearest competitor

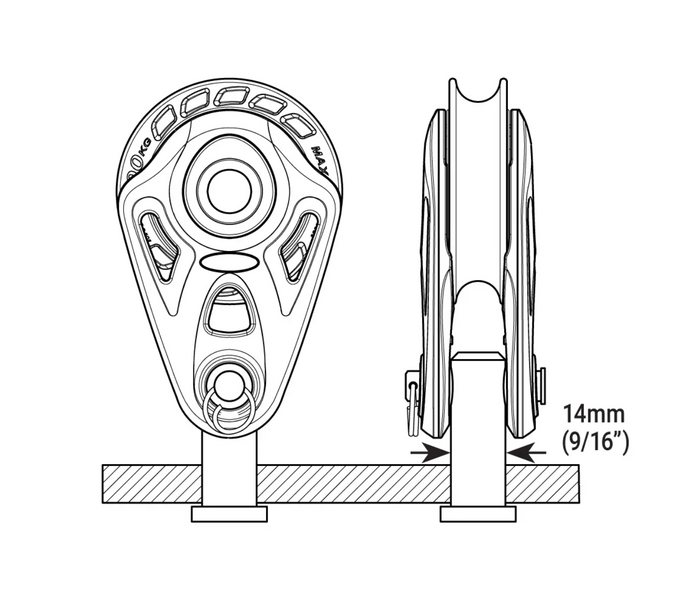

Suits attachment to 14mm (9/16”) wide mast collar post.
Removable 8mm (5/16”) clevis pin at head.
Central hub hole can be used as a becket take-off or tie-up point.
* Full block rated load can only be achieved with uniformly distributed load across full length of clevis pin.
ie.
14mm (9/16") diameter mast collar post or 14mm (9/16") wide mast collar plate/tang
SPECIFICATIONS
| B.L. (kg) | 2000* |
|---|---|
| M.W.L. (kg) | 1000* |
| Max. Rope diameter (mm) | 12 |
| Weight (g) | 182 |
| Pin Ø (mm) | 8 |
| Notes: | Full block rated load can only be achieved with uniformly distributed load across full length of screw pin. i.e. 14mm (9/16”) diameter mast collar post or 14mm (9/16”) wide mast collar plate/tang. |
