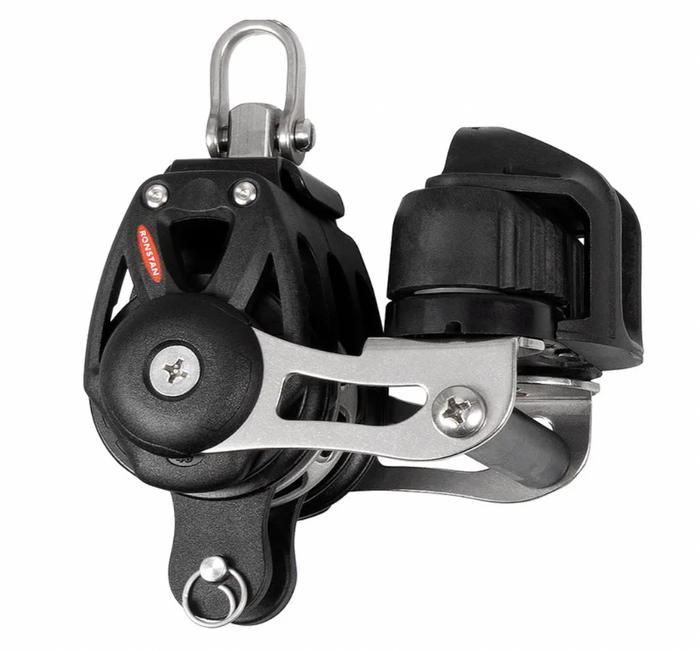

Ronstan Series 40 Ball Bearing Orbit Block™, Triple Ratchet with Adjustable Cleat RF46330
$172.84
Sale price
$172.84
Regular price
$270.07
Triple ratchet block with swiveling shackle head, becket and C-Cleat™
FEATURES
Headposts freely swivel or can be locked in 0°or 90°.
Composite C-Cleat™ and fairlead.
Removable becket pins allow lines to be spliced prior to fitting and are secured using a split ring.
Replaceable ratchet sheave, RF46000.
APPLICATIONS
Mainsheet systems and spinnaker sheets on dinghies, off-the-beach catamarans and sportsboats to 8m (26ft).
Halyard, vang and backstay applications on boats to 9m (30ft).
Control line applications on larger yachts.
MATERIALS
- Frame/cheeks: Toughened, glass fibre reinforced nylon.
- Head fittings, hubs & fasteners: Grade 316 stainless steel.
- Sheave and ball bearings: High compression strength acetal.
SPECIFICATIONS
| B.L. (kg) | 1200 |
|---|---|
| M.W.L. (kg) | 600* |
| Max. Rope diameter (mm) | 9 |
| Weight (g) | 270 |
| Pin Ø (mm) | 5 |
| Sheave Material | Acetal |
| Notes: | *Line load through cleat not to exceed 125kg (275lb). MWL is total block load. Becket MWL 400kg (880lb), BL 800kg (1760lb). |
