Ronstan Series 40 Ball Bearing Orbit Block™, Single,Swivel RF48100
$31.50
Sale price
$31.50
Regular price
$39.87

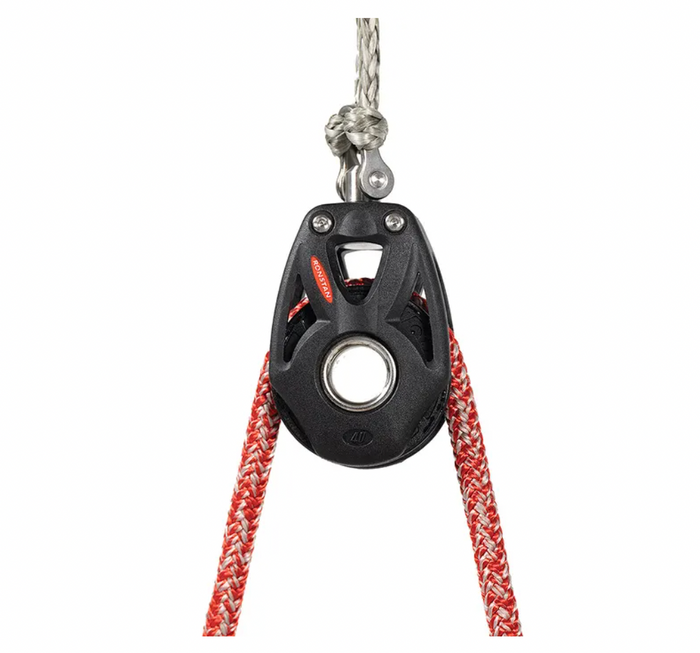

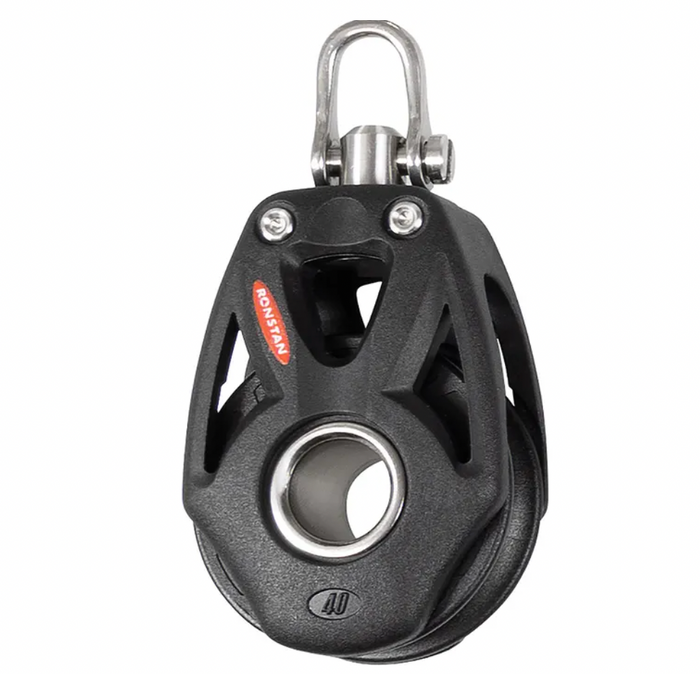

Single, Swivel Head, with Acetal Sheave and Ball Bearings
APPLICATIONS
Mainsheet systems and spinnaker sheets on dinghies, off-the-beach catamarans and sportsboats to 8m (26ft).
Halyard, vang, and backstay applications on boats to 8m (26ft).
Control line applications on larger yachts.
MATERIALS
- Sheave and Ball Bearings: High compression strength acetal.
- Frame/cheeks: Toughened, glass fibre reinforced nylon.
- Head fittings, hubs, and fixtures: Grade 316 stainless steel.
SPECIFICATIONS
| B.L. (kg) | 800 |
|---|---|
| M.W.L. (kg) | 400 |
| Max. Rope diameter (mm) | 10 |
| Weight (g) | 60 |
| Pin Ø (mm) | 4 |
| Notes: | This product does not have a locking headpost, which is only available in the multiple sheave variants. RF48100 is free swivel rotation only. |
