Ronstan Series 40 Ball Bearing Orbit Block™, Quad, Becket RF48410
$121.93
Sale price
$121.93
Regular price
$176.71
Skip to product information
Ronstan Series 40 Ball Bearing Orbit Block™, Quad, Becket RF48410
$121.93
Sale price
$121.93
Regular price
$176.71

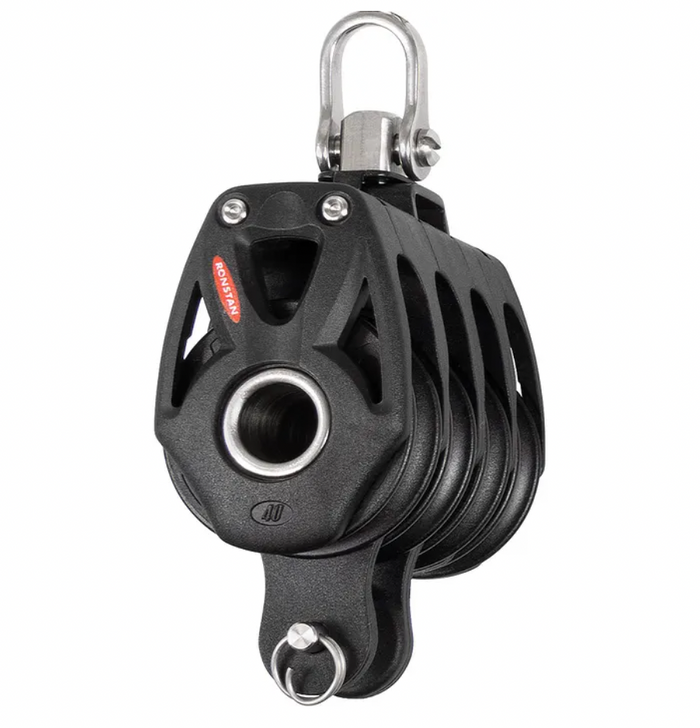

Quadruple sheave block with swivel shackle head and becket.
FEATURES
2-stage ball bearing system.
Headposts freely swivel or can be locked in 0° or 90°.
Removable becket pins allow lines to be spliced prior to fitting and are secured using a split ring.
APPLICATIONS
Mainsheet systems and spinnaker sheets on dinghies, off-the-beach catamarans and sportsboats to 8m (26ft).
Halyard, vang and backstay applications on boats to 8m (26ft).
Control line applications on larger yachts.
MATERIALS
- Sheave and ball bearings: High compression strength acetal.
- Frame/cheeks: Toughened, glass fibre reinforced nylon.
- Head fittings and hubs: Grade 316 stainless steel.
SPECIFICATIONS
| B.L. (kg) | 1200 |
|---|---|
| M.W.L. (kg) | 600 |
| Max. Rope diameter (mm) | 10 |
| Weight (g) | 200 |
| Notes: | Total block load. Becket MWL 400kg (880lb), BL 800kg (1760lb) |
