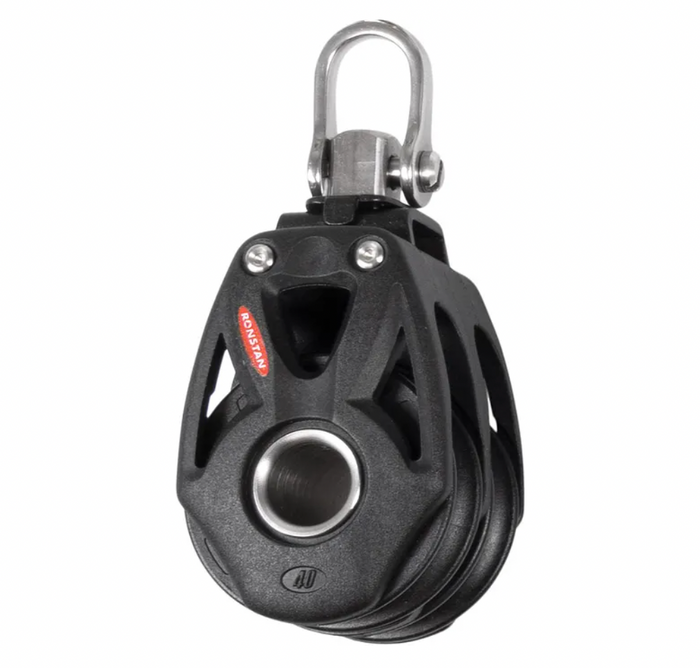

Ronstan Series 40 Ball Bearing Orbit Block™, Double, Shackle Head RF48200
$68.22
Sale price
$68.22
Regular price
$94.75
Skip to product information
Ronstan Series 40 Ball Bearing Orbit Block™, Double, Shackle Head RF48200
$68.22
Sale price
$68.22
Regular price
$94.75
Double sheave block with swivel shackle head.
FEATURES
2-stage ball bearing system.
Headposts freely swivel or can be locked in 0° or 90°.
APPLICATIONS
- Mainsheet systems and spinnaker sheets on dinghies, off-the-beach catamarans and sportsboats to 8m (26ft).
- Halyard, vang and backstay applications on boats to 8m (26ft).
- Control line applications on larger yachts.
MATERIALS
- Sheave and ball bearings: High compression strength acetal.
- Frame/cheeks: Toughened, glass fibre reinforced nylon.
- Head fittings and hubs: Grade 316 stainless steel.
SPECIFICATIONS
| B.L. (kg) | 1200 |
|---|---|
| M.W.L. (kg) | 600 |
| Max. Rope diameter (mm) | 10 |
| Weight (g) | 118 |
| Pin Ø (mm) | 5 |
