Ronstan Series 30 Ball Bearing Orbit Block™, Double with Becket RF35212
$30.18
Sale price
$30.18
Regular price
$45.04
Skip to product information
Ronstan Series 30 Ball Bearing Orbit Block™, Double with Becket RF35212
$30.18
Sale price
$30.18
Regular price
$45.04

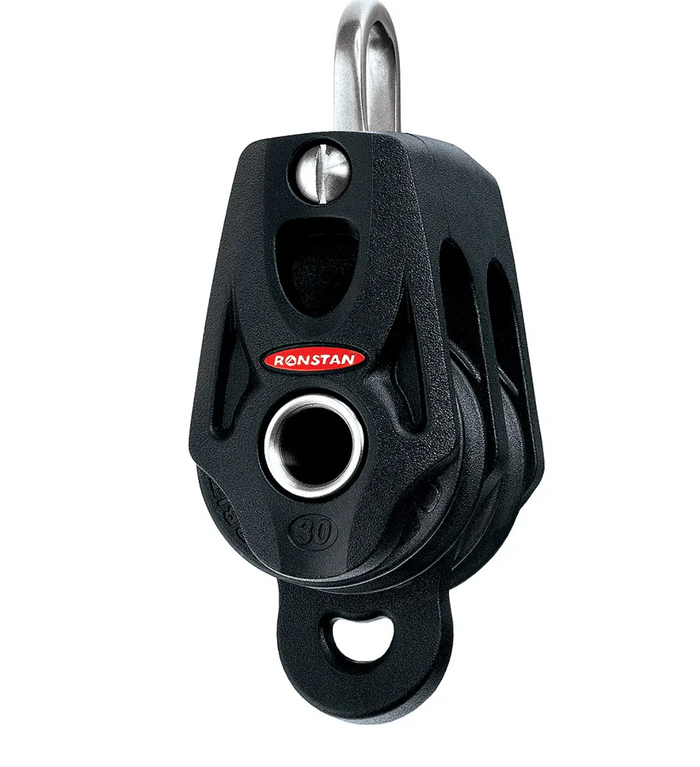

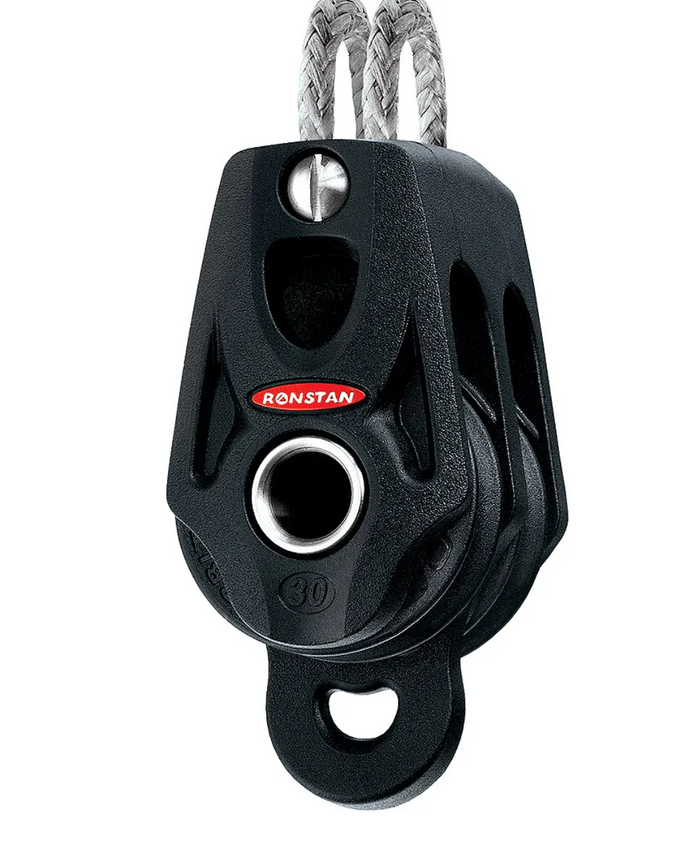

Double sheave block with becket and non-swivel shackle head.
FEATURES
Lightweight.
Highest working load in its class.
Secure, versatile attachment.
Ultra low profile thru-sheave becket.
Low friction 2-stage ball bearing system provides consistent performance over the full working load range.
SP versions feature a Nylatron® sheave suitable for both rope and wire.
APPLICATIONS
- Mainsheet systems and spinnaker sheets on dinghies to 5m (16ft).
- Halyard, vang and backstay applications on boats to 5m (16ft).
- Control line applications on larger yachts.
MATERIALS
- Sheave: High compression strength acetal.
- Ball Bearings: High compression strength acetal.
- Frame/Cheeks: Toughened, glass fibre reinforced Nylon.
SPECIFICATIONS
| B.L. (kg) | 900 |
|---|---|
| M.W.L. (kg) | 450 |
| Max. Rope diameter (mm) | 8 |
| Weight (g) | 57 |
| Notes: | Becket suits up to 6mm (1/4”) line. For lines above 6mm (1/4”) use an additional Dyneema® link (sold separately). Load on becket not to exceed 25% of block load. Suitable for 4:1 system at rated block load. |
