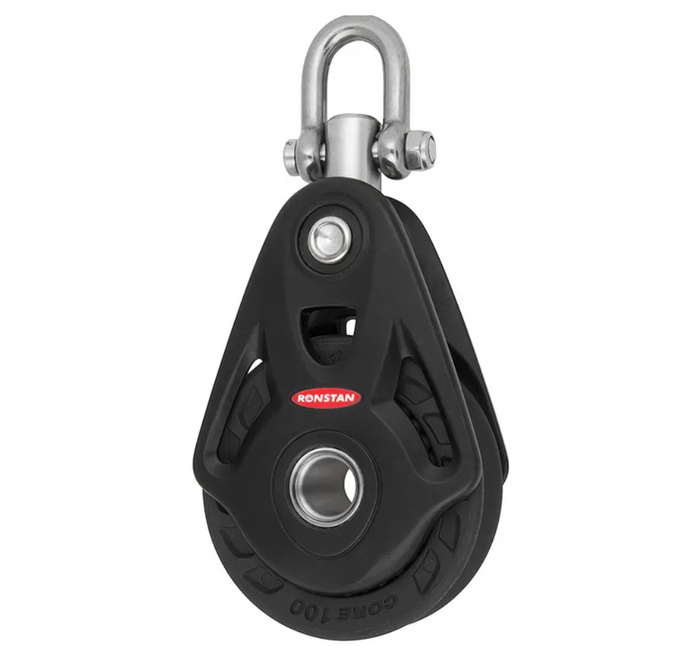

Ronstan Series 100 Core Block™, Single RF104100
Ronstan Series 100 Core Block™, Single RF104100
Single, universal head
FEATURES
High dynamic and static load capacity.
High load bearing system.
Ball bearings to counteract side thrust loads.
Class leading performance and sleek, contemporary styling.
Durable aluminium alloy cheek plates.
Central hub hole can be used as a becket take-off or tie-up point.
Also available in Series 45, 60 & 75
Universal head with full 3-axis articulation
Head posts can be locked at 0 or 90 degrees, by using a 2.5mm Hex Key
MATERIALS
Bearings: High compression strength, self-lubricating acetal. Head post: Grade 2205 stainless steel. Shackles: Grade 17-4PH stainless steel. Padeye: Grade 15-5PH stainless steel. Other fixtures: Grade 316 stainless steelShackle, post & hub: Grade 316 stainless steel.
SPECIFICATIONS
| B.L. (kg) | 7500 |
|---|---|
| M.W.L. (kg) | 3250 |
| Max. Rope diameter (mm) | 18 |
| Weight (g) | 900 |
| Pin Ø (mm) | 10 |
| Qty. Balls | 54 |
