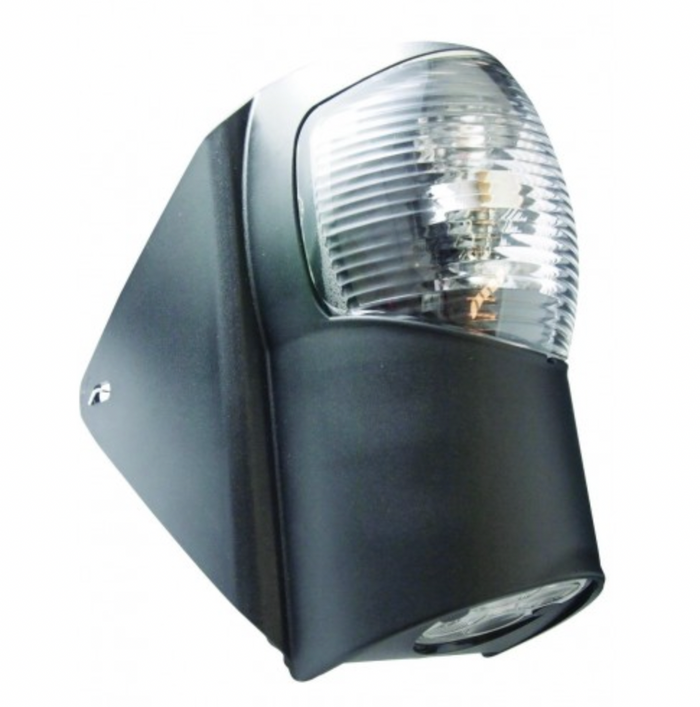

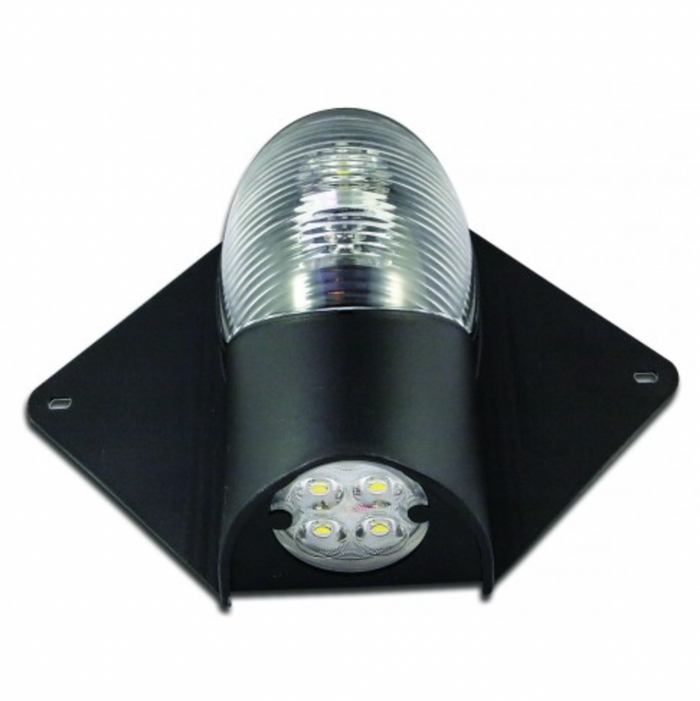

QLED NAVIGATION 3NM, STEAMING/ DECK LIGHT COMBO, 225DEG., 9-33V
$89.58
Sale price
$89.58
Regular price
$131.74
- Fully approved for vessels 50M or less ,USCG COLREG ABYC CE
- Certificates available Significant power savings of up to 90%
- Zero maintenance & long service. High visibility to International Standards
- Minimum 2NM or 3NM* visibility. Sealed to IP67 certification
- {Sealed to IP66 for 360 degree models} .Shock & Vibration Proof
- Multi-Volt 9~33vdc .Operating temp -20*~+60*C
- Supplied with 25cmTinned Copper Cable.
- Steaming Light Specifications
- 225 degree
- 3NM Min.Visible distance
- Vertical mounting
- .14amps @12 v
- Lamp Weight 310g approx.
- Cable Weight n/a
- 141h x 195w x 61d {mm}
- 3 Year Australia only warranty, 1 year limited warranty in commercial operations
Deck Light Specifications:
Cables available in Australia 3 Core Copper core 3mm {1.13mmsq} OR 3 Core Tinned Copper core 4mm {1.84mmsq}
- 10 degree
- 4 x 1 watt
- 435 lumen {+/- 25%}
- .23amps @12v alone
-
Wiring: White=Earth, Yellow=Steaming+, Brown=Deck+ - Please ensure that suitable support & strain relief is given to the suspended cable at time of installation so that no undue pressure is applied the cable supplied with the lamp.
