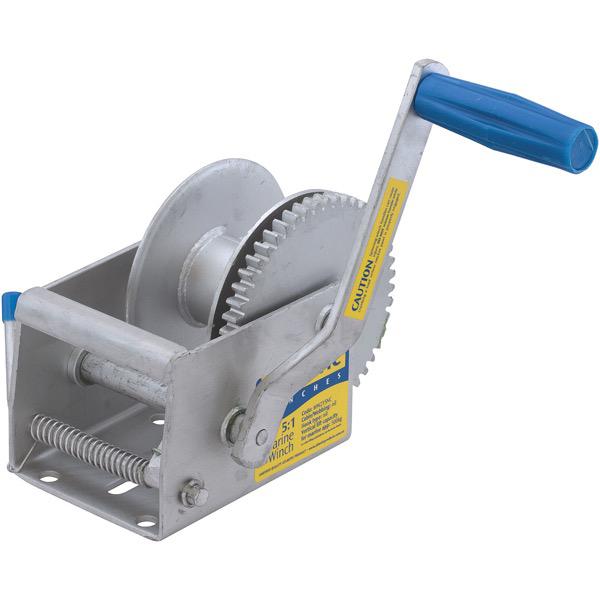

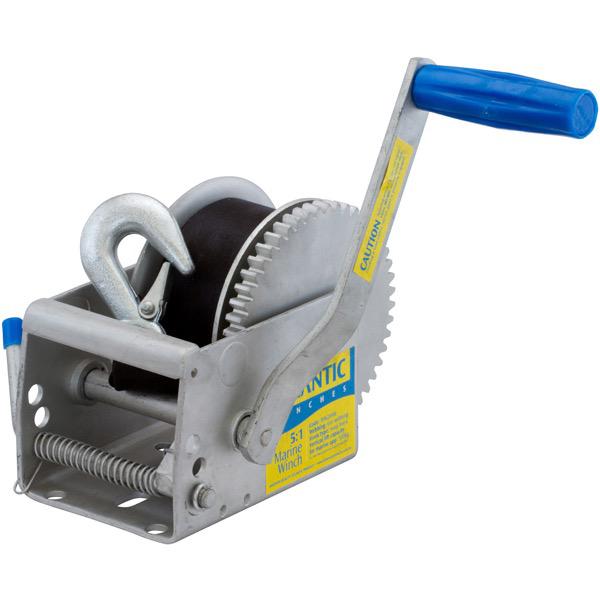

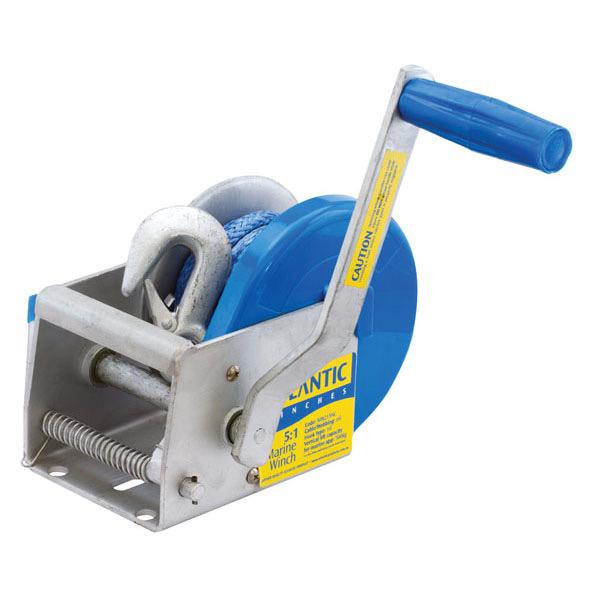

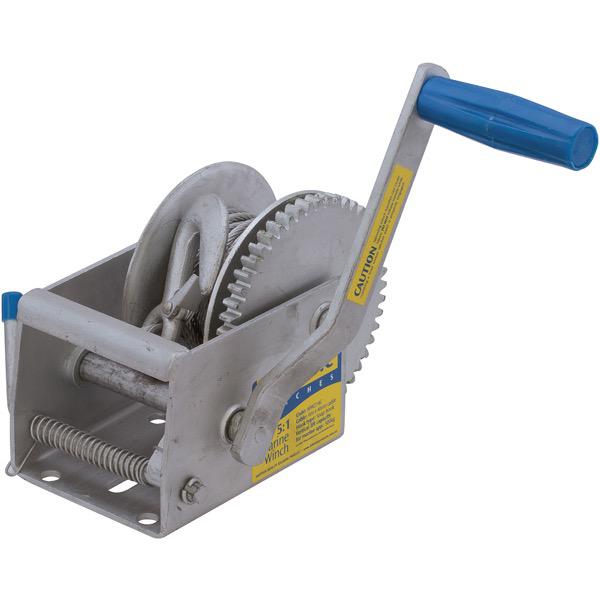

Atlantic 5:1 Hand Winch

Atlantic 5:1 Hand Winch

NA / 6m Webbing w/ Snap Hook
$76.10
$76.10 $97.57
Skip to product information
Atlantic 5:1 Hand Winch
  • Atlantic 5:1 Hand Winch
  • Atlantic 5:1 Hand Winch
  • Atlantic 5:1 Hand Winch
  • Atlantic 5:1 Hand Winch
  • Atlantic 5:1 Hand Winch
  • Atlantic 5:1 Hand Winch
  • Atlantic 5:1 Hand Winch
  • Atlantic 5:1 Hand Winch
Atlantic 5:1 Hand Winch

Atlantic 5:1 Hand Winch

$76.10
$76.10 $97.57
ColorNA
Size
Atlantic® Marine Winch Series
Suitable for retrieving boats up to 20 feet in length, the Atlantic® range of Marine Winches are available in five different
ratios - 3:1, 5:1, 5:1/1:1, 10:1/5:1/1:1 or 15:1/5:1/1:1 - and with load capacity ratings operating from 500kg to 1500kg.
Depending on the marine application, there's a number of options available including cable, webbing strap,
Atlantic Rope™ or no cable.

  • Fixed Handle.
  • Compact design.
  • NATA tested.
  • Dacromet finish.
  • Ratchet pawl.

    Other Details:

    Part No. Application Gear
    Ratio
    		 Pull Capacity
    (kg)    		 Cable Type Hook Type Ratchet Type Drum Hub
    (mm)    		 Flange Diameter
    (mm)    		 Drum Width I.D.
    (mm)    		 Max Cable/Rope
    Capacity
    542682 Boat Trailer 5:1 700 6m x 6mm Rope Snap Hook Pawl Lever 50 130 50 20m x 5mm
    542701 Boat Trailer 5:1 700 6m Webbing Snap Hook Pawl Lever 50 130 50 20m x 5mm
    542711 Boat Trailer 5:1 700 6m x 5mm Cable Snap Hook Pawl Lever 50 130 50 20m x 5mm
    542721 Boat Trailer 5:1 700 No Cable No Hook Pawl Lever 50 130 50 20m x 5mm
