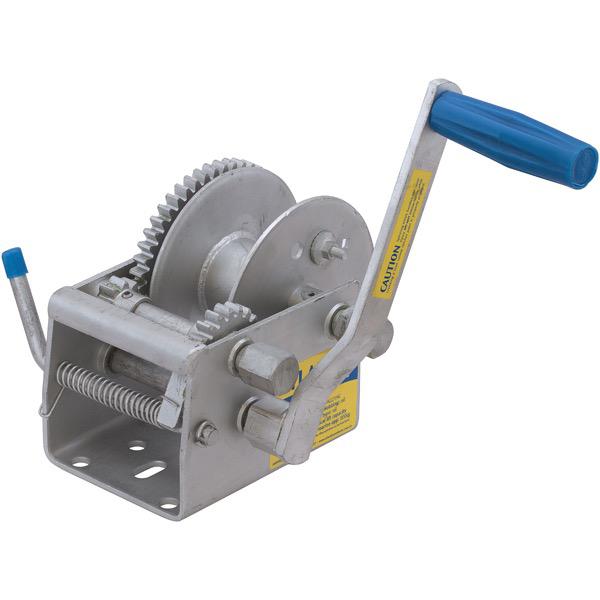

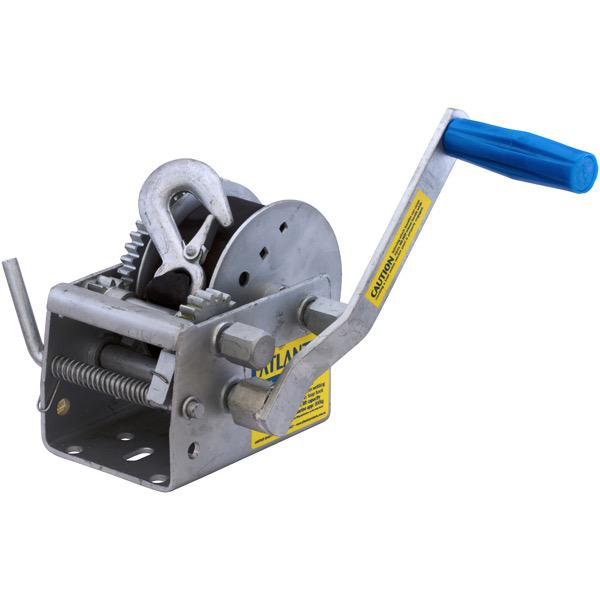

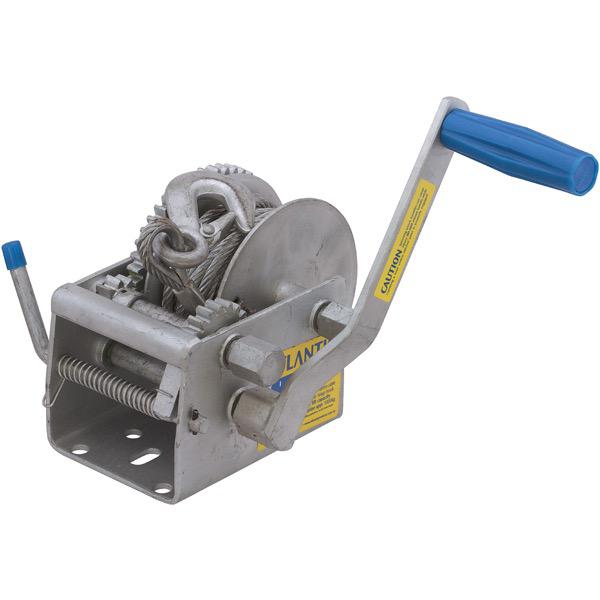

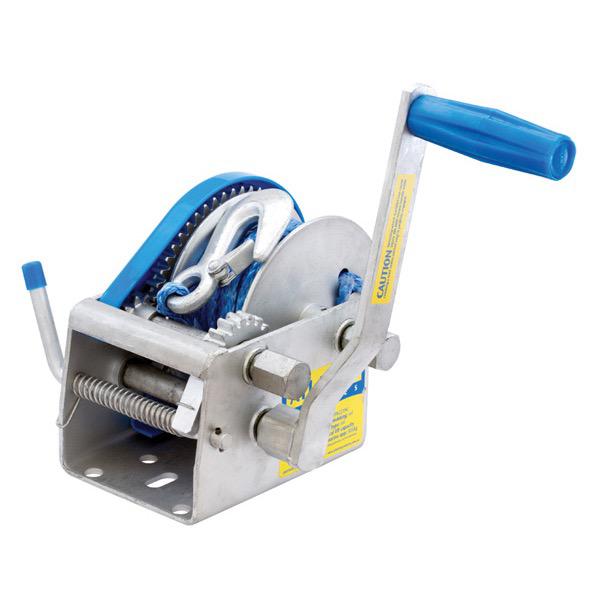

Atlantic 10:1/5:1/1:1 Hand Winch

Atlantic 10:1/5:1/1:1 Hand Winch

NA / 7.5m Webbing with Snap Hook
$101.29
$101.29 $128.21
Skip to product information
Atlantic 10:1/5:1/1:1 Hand Winch
  • Atlantic 10:1/5:1/1:1 Hand Winch
  • Atlantic 10:1/5:1/1:1 Hand Winch
  • Atlantic 10:1/5:1/1:1 Hand Winch
  • Atlantic 10:1/5:1/1:1 Hand Winch
  • Atlantic 10:1/5:1/1:1 Hand Winch
  • Atlantic 10:1/5:1/1:1 Hand Winch
  • Atlantic 10:1/5:1/1:1 Hand Winch
  • Atlantic 10:1/5:1/1:1 Hand Winch
Atlantic 10:1/5:1/1:1 Hand Winch

Atlantic 10:1/5:1/1:1 Hand Winch

$101.29
$101.29 $128.21
ColorNA
Size
Atlantic® Marine Winch Series
Suitable for retrieving boats up to 20 feet in length, the Atlantic® range of Marine Winches are available in five different
ratios - 3:1, 5:1, 5:1/1:1, 10:1/5:1/1:1 or 15:1/5:1/1:1 - and with load capacity ratings operating from 500kg to 1500kg.
Depending on the marine application, there's a number of options available including cable, webbing strap,
Atlantic Rope™ or no cable.

  • Interchangeable Handle.
  • Compact design.
  • NATA tested.
  • Dacromet finish.
  • Ratchet pawl.

    Other Details:

    Part No. Application Gear
    Ratio    		 Pull Capacity
    (kg)    		 Cable Type Hook Type Drum Hub
    (mm)    		 Flange Diameter
    (mm)    		 Drum Width I.D.
    (mm)    		 Max Cable/Rope
    Capacity
    542686 Boat Trailer 10:1/5:1/1:1 1000 7.5m x 6mm Rope Snap Hook 50 130 50 9.5m x 6mm
    542703 Boat Trailer 10:1/5:1/1:1 1000 7.5m Webbing Snap Hook 50 130 50 9.5m x 6mm
    542713 Boat Trailer 10:1/5:1/1:1 1000 7.5m x 6mm Cable Snap Hook 50 130 50 9.5m x 6mm
    542723 Boat Trailer 10:1/5:1/1:1 1000 No Cable No Hook 50 130 50 9.5m x 6mm
