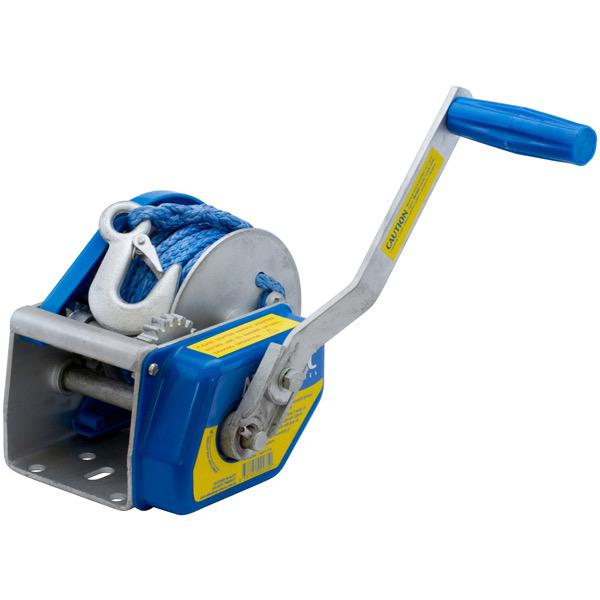

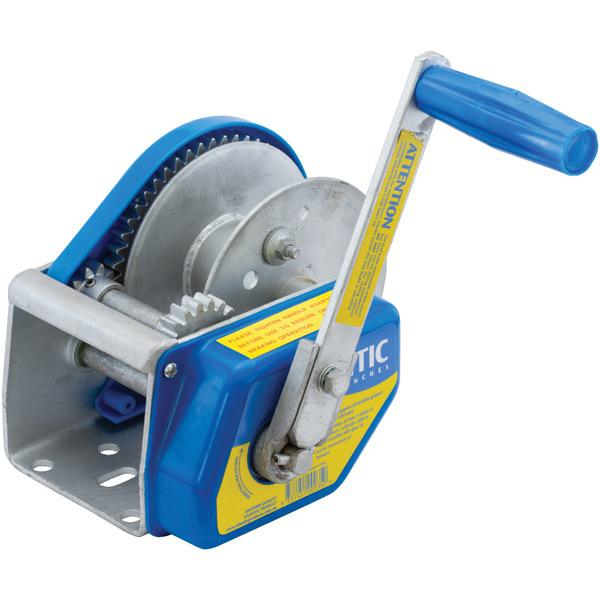

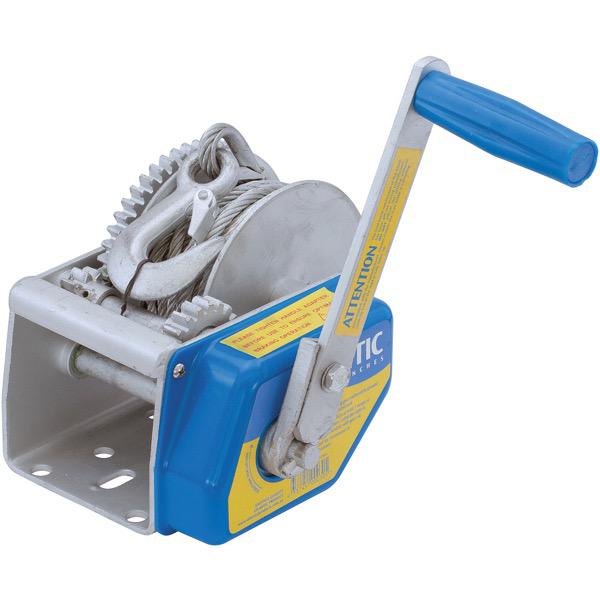

Atlantic 10:1 Hand Brake Winch

Atlantic 10:1 Hand Brake Winch

NA / 7.5m x 6mm Cable with Snap Hook
$182.92
Sale price  $182.92 Regular price  $231.55
Skip to product information
Atlantic 10:1 Hand Brake Winch

Atlantic 10:1 Hand Brake Winch

$182.92
Sale price  $182.92 Regular price  $231.55
ColorNA
Size
Atlantic® Brake Winch Series
The Atlantic® range of Brake Winches are available in 3 different ratio sizes – 3:1, 5:1 and 10:1 with load
capacity ratings operating from 200kg to 500kg. The range offers the option of cable, Atlantic Rope™ or
no cable and is suitable for pulling or lifting. The self-actuating automatic braking mechanism ensures
the suspension of loads and jerk-free movement when lowering a load under pressure. The carbon
copper fibre brake pads also ensure that a load is always secured under braking load.

  • The self actuating automatic braking mechanism ensures the suspension of loads and 'jerk-free' movement when lowering a load under pressure.
  • Fixed Handle.
  • Compact design.
  • NATA tested.
  • Dacromet finish.

    Other Details:

    Part No. Application Gear
    Ratio
    Direct Lift Capacity
    (kg)
    Cable Type Hook Type Drum Hub
    (mm)
    Flange Diameter
    (mm)
    Drum Width I.D.
    (mm)
    Max Cable/Rope
    Capacity
    542698 Lifting 10:1 500 7.5m x 6mm Rope Snap Hook 50 130 50 9.5m x 6mm
    542731 Lifting 10:1 500 7.5m x 6mm Cable Snap Hook 50 130 50 9.5m x 6mm
    542733 Lifting 10:1 500 No Cable No Hook 50 130 50 9.5m x 6mm
